Backflow preventers are crucial components in plumbing systems, safeguarding our drinking water from contamination. These devices prevent the reversal of water flow, which can occur due to:
-
Backsiphonage: A drop in water pressure within the potable water supply line can create a vacuum, potentially drawing in contaminated water from sources like irrigation systems, swimming pools, or fire sprinklers.
-
Backpressure: An increase in pressure in the non-potable water system can force contaminated water back into the potable water supply.
Important Considerations:
-
Regular Inspection and Testing: Backflow preventers must be regularly inspected and tested by a qualified professional to ensure proper functionality.
-
Professional Installation: Proper installation is critical for the effective operation of any backflow prevention device.

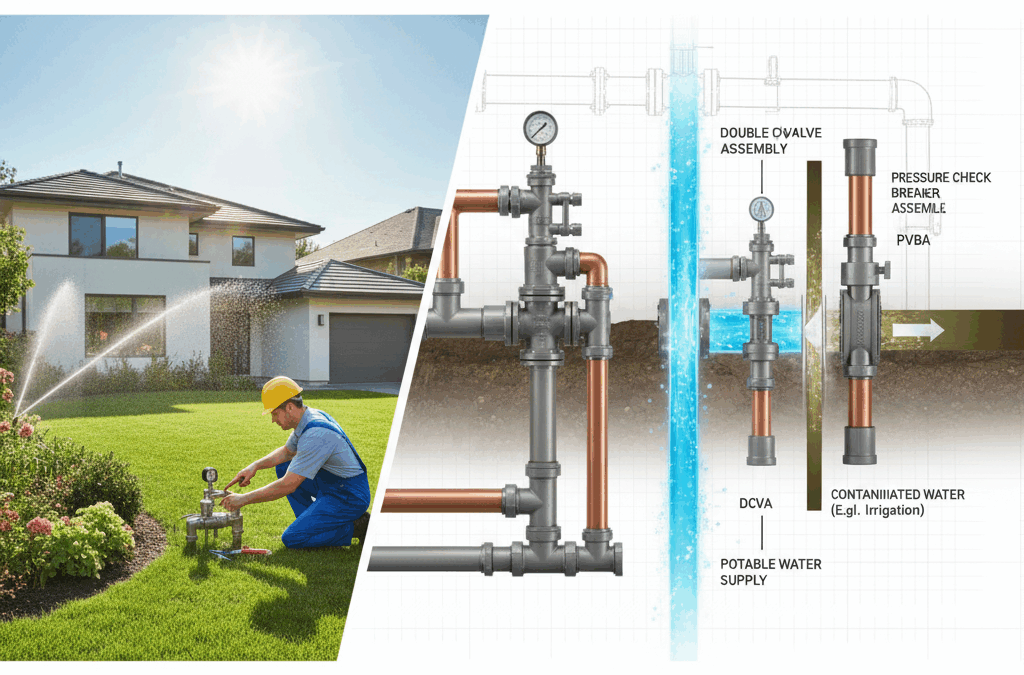

Choosing the Right Backflow Assembly:
The selection of the appropriate backflow preventer depends on several factors, including:
-
Potential hazards: The level of potential contamination risk.
-
System pressure: The typical water pressure within the system.
-
Local codes and regulations: Specific requirements may vary depending on your location.
Reduced Pressure Zone (RPZ) Assemblies:
- Considered the most reliable type of backflow preventer.
- Utilize two independently operating check valves and a relief valve to create a reduced pressure zone within the device.
- Effective against both backsiphonage and backpressure.
Double Check Valve Assemblies (DCVAs):
- Employ two independently operating check valves to prevent backflow.
- Generally less expensive than RPZs.
- Primarily effective against backsiphonage.
- May not be suitable in all situations, particularly where high backpressure is a concern.
Pressure Vacuum Breaker Assemblies (PVBAs):
- Designed to prevent backsiphonage.
- Utilize a spring-loaded check valve and a vent to release air into the line, breaking the vacuum and preventing the flow of contaminated water.
Atmospheric Vacuum Breakers (AVBs):
- Similar to PVBAs but simpler in design.
- Primarily used on garden hoses and other low-pressure applications.
- Generally less expensive than other types of backflow preventers.
